When it comes to air compressor drive systems, two main options dominate the market: belt drive and direct drive. For years, industry professionals have debated which of these transmission methods offers the best performance, energy efficiency, and cost-effectiveness. In this article, we’ll break down the differences between the two and help you decide which option is best for your specific needs.
Understanding Direct Drive vs Belt Drive in Air Compressors

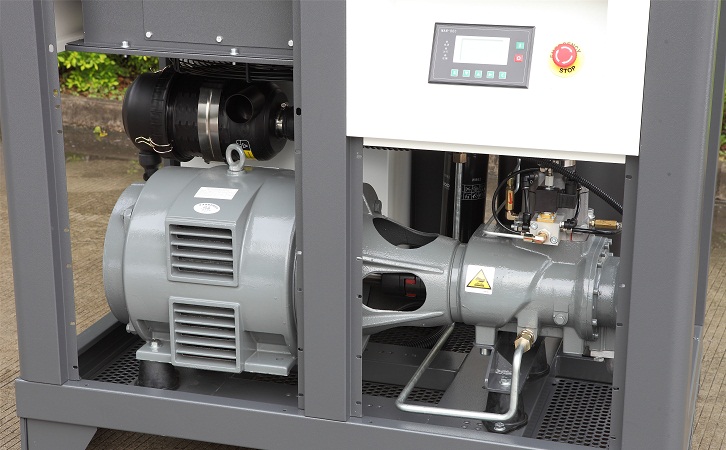

In a direct drive system, the motor shaft is connected directly to the rotor, meaning both components rotate at the same speed. This design reduces the need for additional mechanical components, such as gears or pulleys, which can lead to energy losses. However, the term “direct drive” is often misused—most screw air compressors use a coupling and gearbox to drive the rotor, which still results in some energy loss.
Belt drive systems, on the other hand, utilize pulleys and belts to transfer power from the motor to the rotor. The key advantage of this system is flexibility. By using different pulley sizes, you can adjust the rotor’s speed to match the required output.
Comparing Belt Drive and Direct Drive Systems
1. Efficiency
A high-quality gear-driven system can achieve an efficiency rate of 98% to 99%. Similarly, a well-designed belt drive system can also reach 99% efficiency under normal operating conditions, depending on the design and quality of the components. Therefore, the performance of both systems largely depends on the manufacturer’s design and manufacturing capabilities rather than the transmission type itself.
2. Energy Consumption (Idle Load Energy)
For gear-driven systems, the idle load pressure generally needs to be maintained above 2.5 bar, sometimes as high as 4 bar, to ensure proper lubrication of the gearbox. On the other hand, belt-driven systems can maintain idle pressure close to zero, as the oil drawn into the rotor is enough to lubricate the rotor and bearings. As a result, belt-driven air compressors often consume significantly less energy during idle times.
For example, a 160 kW gear-driven screw compressor operating for 8,000 hours annually, with 15% of that time (1,200 hours) spent running idle, will consume an additional 28,800 kWh compared to a similar belt-driven unit. Over time, this results in substantial additional energy costs.
3. Oil Loss
Experienced users know that gear-driven systems are more susceptible to oil loss, which can damage the gearbox and related components. In contrast, belt-driven systems do not have this issue, making them a more reliable and low-maintenance option.
4. Customizing Operating Pressure
Belt-driven compressors offer more flexibility when it comes to adjusting operating pressures. If the user requires a specific pressure (e.g., 10 bar), a belt-driven compressor can simply adjust the pulley diameter to achieve the desired pressure and airflow. For gear-driven systems, adjusting the pressure requires more complex modifications and is often more costly.
5. Pressure Adjustments After Installation
In situations where production needs change and pressure adjustments are necessary, belt-driven systems make this process simple and affordable—just swap the pulleys to adjust the pressure. Gear-driven compressors, however, often require more costly modifications to change the system’s operating pressure.
6. Bearing Replacement
When the rotor bearings need replacing in gear-driven compressors, it typically requires a full overhaul of the gearbox, adding significant downtime and maintenance costs. For belt-driven compressors, bearing replacements are simpler, requiring no major overhaul of the motor or drive system.
7. Seal Replacements
Replacing the shaft seals in gear-driven systems is often a time-consuming and labor-intensive process, as it requires separating the motor, coupling, and other components. In contrast, for belt-driven compressors, seal replacements are straightforward and faster, saving both time and money.
8. Motor and Rotor Bearing Failures
Motor or rotor bearing failures in gear-driven systems can lead to widespread damage across the entire system, resulting in both direct and indirect costs. Belt-driven systems, on the other hand, are less prone to such cascading failures.
9. Noise and Vibration
Gear-driven compressors tend to be noisier due to the direct connection between the motor and rotor. The vibrations from the rotor are transferred directly to the gearbox and motor bearings, increasing both noise and wear. Belt-driven compressors are generally quieter, as the belt acts as a buffer, reducing vibration and noise.
Conclusion: Which Drive System Is Right for You?
Ultimately, both direct drive and belt drive systems have their advantages and drawbacks. Belt drive systems are more flexible, cost-effective for maintenance, and offer energy savings in idle conditions. They are also easier to adjust and maintain, making them an excellent choice for many industrial applications.
On the other hand, direct drive systems are typically more compact and offer higher efficiency in continuous operation. However, they can be more expensive to maintain due to the need for specialized components and more complex repairs.
If you’re looking for a system that is easy to maintain, offers flexibility in operation, and is cost-effective over time, a belt-driven compressor is likely the best choice for your needs.
