Two-stage compression SH-II series
Superior Efficiency | Intelligent Control | Maximum Energy Savings
Revolutionizing Industrial Air Compression with Two-Stage Technology

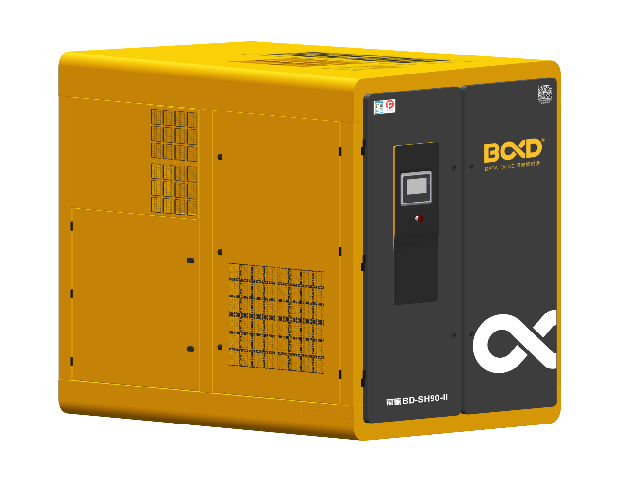

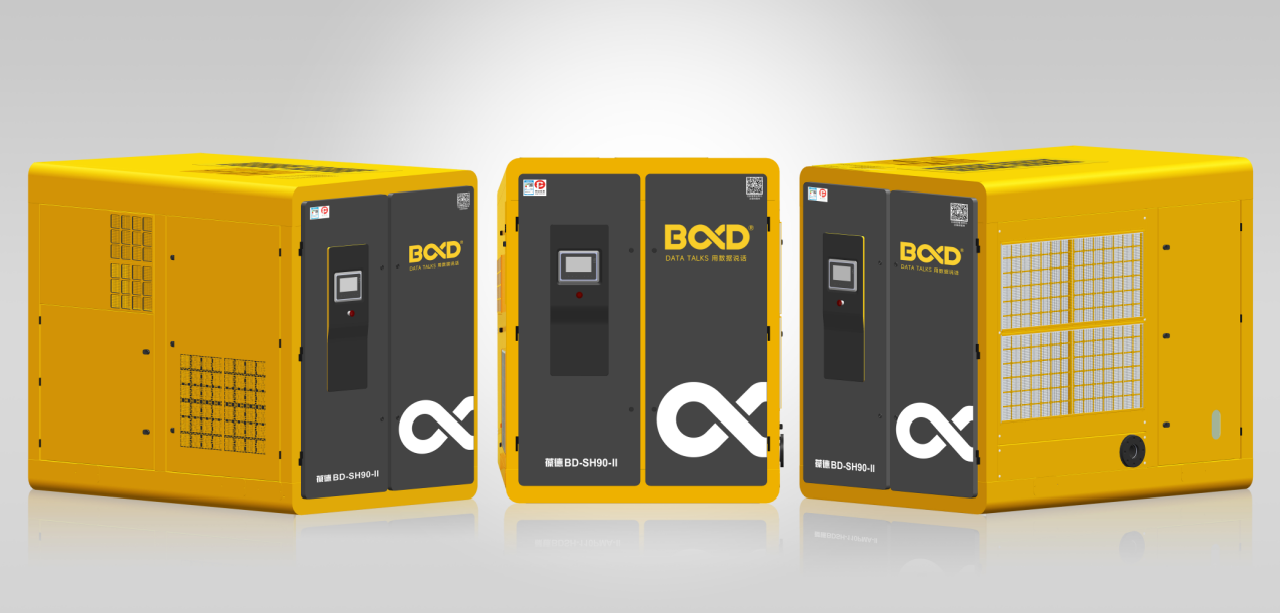

The Baldor SH-II Series is a next-generation, two-stage permanent magnet screw air compressor, engineered to provide unmatched efficiency, extended lifespan, and superior energy savings. Utilizing IE4 Permanent Magnet Motors, Optimized Two-Stage Compression, and an Advanced Intelligent Control System, the SH-II Series is the ultimate solution for high-demand industrial air compression needs.
Why Choose the SH-II Series?
✅ Using a liquid-cooled motor, the protection level is higher, up to IP65, and can work in harsher environments
✅ Moteur à aimant permanent IE4 – Industry-leading efficiency, achieving up to 50% energy reduction.
✅ Igher wind pressure, wider application
✅ Innovative multi-core oil design, Maintenance is more convenient, User maintenance costs are reduced
✅ Low temperature, high energy efficiency. The energy efficiency is 1.6% better than that of air-cooled motor.
See the SH-II Series in Action
Discover the technological advancements of Baldor’s SH-II Series Two-Stage Permanent Magnet Screw Air Compressor through next-level energy efficiency, intelligent automation, and robust industrial design.
✅ Enhanced Two-Stage Compression | Higher Efficiency & Lower Energy Costs
✅ Smart AI Control | Remote Monitoring & IoT-Based Performance Tracking
✅ High-Durability Airend | Longer Service Life & Lower Maintenance Costs
Participez à la révolution de la fabrication intelligente

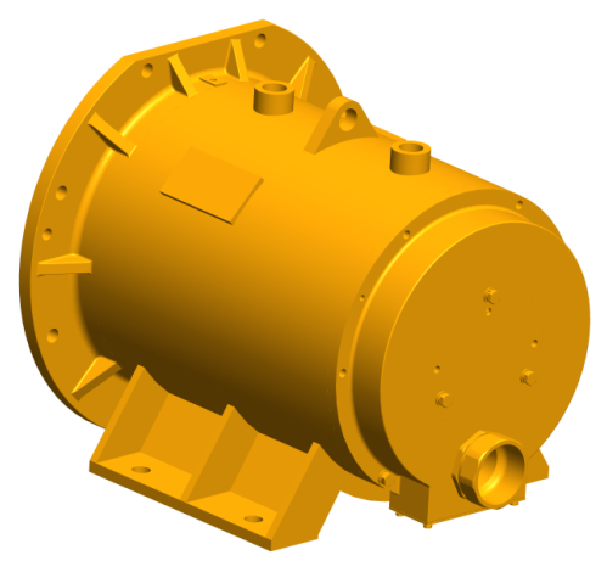

Liquid-cooled motor
✅ Using a liquid-cooled motor, the protection level is higher, up to IP65, and can work in harsher environments.
✅ Low temperature, high energy efficiency. The energy efficiency is 1.6% better than that of air-cooled motor.
Type | Cooling method | Protection Level | Coil temperature | Efficiency | Energy density | Bruit |
Air-cooled | air cooling | IP55 | ≤130℃ | 96.0% | Low | High |
Liquid-cooled | antifreeze | IP65 | ≤100℃ | 97.6% | High | Low |
Système de contrôle intelligent de l'informatique en nuage
Surveillance intelligente basée sur l'informatique en nuage pour une fiabilité 24/7
Intelligent Cloud Control System:
📡 Surveillance en temps réel de l'IdO : Live tracking of compressor performance.
📊 Maintenance prédictive par l'IA : Alerts and diagnostics to prevent failures before they occur.
🔧 Interface conviviale : 7-inch touchscreen with smart automation controls.
Avantages du système de contrôle intelligent :
✅ Automatic Load Adjustment for Energy Efficiency;
✅ Comprehensive Performance Reports & Analytics;
✅ Remote Operation & Instant Alerts.
Économies d'énergie et efficacité des coûts
💰 Up to 50% Energy Reduction vs. Traditional Compressors
📈 Energy Savings Example:
A manufacturing facility replacing a 75 kW single-stage compressor with an SH-II two-stage model can save over $18,000 annually in electricity costs.
- Traditional single-stage compressors operate at higher energy levels, leading to waste.
- SH-II Series Two-Stage Compression optimizes energy use by reducing compression workload, resulting in lower heat generation and higher efficiency.
- ROI within 1-2 years – Rapid payback period due to significant power savings.
Prêt à transformer vos opérations ?
Fiabilité et performance inégalées
Optimisé pour l'efficacité industrielle
Capacity (m³/min) | Oil tank outer diameter (mm) | Hauteur (mm) | Number of oil separators | Puissance kw |
50-90 | 800 | 1527 | 9 | 250-450 |
25-45 | 600 | 1312 | 6 | 132-220 |
10-30 | 500 | 1216 | 3 | 55-110 |
Applications industrielles
Des solutions polyvalentes pour diverses industries
Automobile et aérospatiale
Supports high-precision air tools and assembly lines
Textile Industry
Delivers stable air supply for weaving, dyeing, and finishing
Alimentation et boissons
Maintient l'air comprimé hygiénique et exempt de contamination
Électronique et semi-conducteurs
Provides oil-free, controlled air for sensitive environments
Certifications et assurance qualité
🌍 Compliant with Global Energy and Safety Standards
✅ ISO 9001 Certified for Quality & Reliability
✅ CE Marked for Safety & Energy Compliance
✅ International Energy Efficiency Standards Approved
💡 Upgrade to Baldor’s SH-II Series Today!
Discover how our Two-Stage Permanent Magnet Screw Air Compressors can enhance efficiency and lower your operational costs.
Nous aimerions travailler avec vous
Découvrez comment la station numérique de Baldor peut révolutionner votre système d'air comprimé. Contactez nos experts pour une consultation personnalisée et un devis adapté à vos besoins.
